Forklift & Stacker Batteries

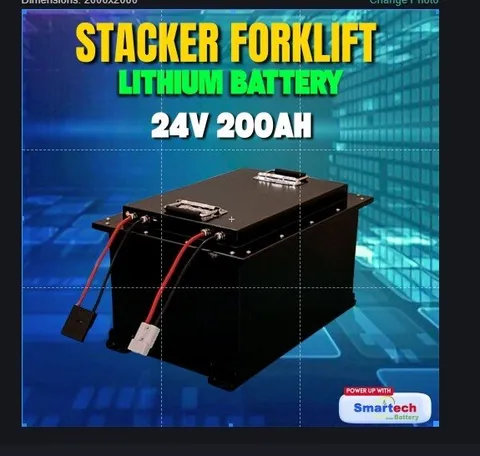

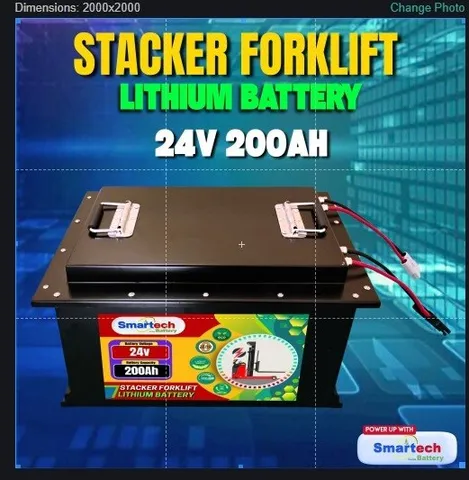

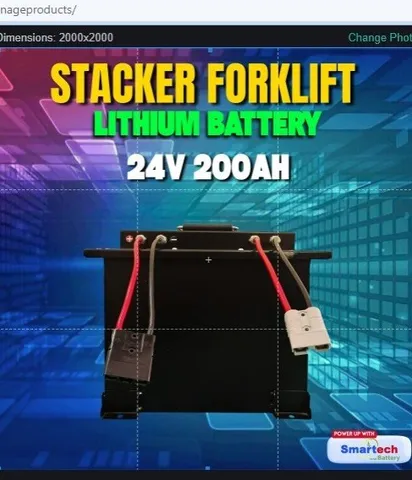

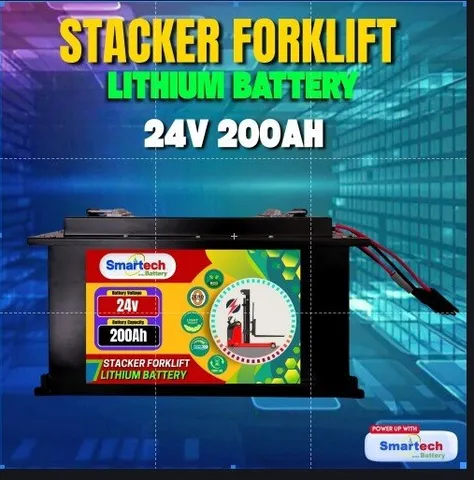

24V 200Ah Lithium Stacker / Forklift Battery
24V 200Ah lithium battery for electric stackers and forklifts - fast opportunity charging, no water top-up.
- Fast opportunity charging
- No water top-up
- 3500-cycle life
- Metal casing
Specifications
Brochure (PDF)| Model | SB-3200 |
|---|---|
| Cell type | Lithium Prismatic |
| Nominal voltage | 25.6 V |
| Nominal capacity | 200 Ah |
| Rated energy | 5120 Watt |
| Charging voltage | 29.2 V |
| Discharge cut-off voltage | 20 V |
| Standard charge current | 0.2C |
| Standard discharge current | 0.5C |
| Max discharge current | 100 A |
| Working temperature | Charging up to 45°C · discharging up to 65°C |
| Connector current | 100 A |
| BMS | SMART BMS |
| Communication | UART / CAN / RS485 |
| Casing | Metal Case |
| Cycle life | 3500 cycles @ 25°C |
| Weight | 30 kg (approx.) |
| Dimensions (L x W x H) | 540 x 332 x 240 mm |
Description

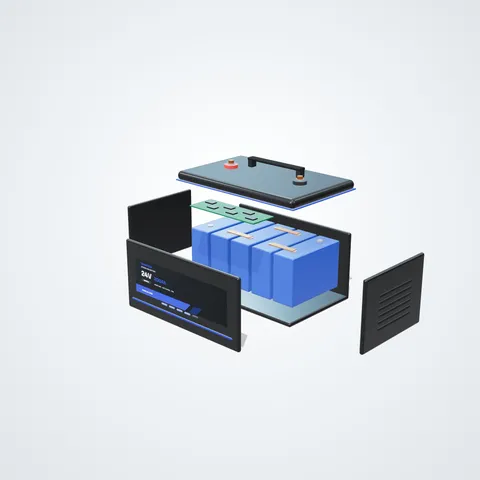

The SMARTECH 24V 200Ah lithium stacker / forklift battery replaces heavy lead-acid batteries with long-life lithium prismatic cells and a built-in BMS. It is lighter, charges faster and needs no maintenance.
- Over-voltage, under-voltage, over-current and short-circuit protection
- High & low temperature protection, soft switch, cell balancing
- Opportunity charging during breaks - no battery swaps
- Technical support available anytime · custom dimensions on request
